WD-8015埋弧焊用烧结焊剂WD-8015 SAW FLUX

符合标准:GB/T17854-1999 F410-H1Cr13
所属分类
没有此类产品
产品描述

符合标准:

GB/T 17854-1999 F410-H1Cr13



说明:WD-8015是氟碱型烧结焊剂,碱度约为1.8(BIIW),为球形颗粒,粒度为10-60目。与相应药芯、高Cr-Ni型实芯焊丝匹配,用于金属表面堆焊。其抗裂纹和焊接工艺性能优良,特别是脱渣性优异。适于各种较小直径轧辊的焊接。配合药芯焊丝进行轧辊堆焊,合金元素烧损少,可保证其堆焊表面的硬度及耐磨性。



用途:可用于堆焊热轧工作辊、支撑辊、开坯辊、校直辊、助卷辊和连铸辊等。



焊剂参考成分(%):





熔敷金属典型值:





参考硬度值:





注意事项:

1、焊剂如果受潮,在使用前须经300~350℃烘焙2小时。

2、焊接处须清除铁锈、油污、水分等杂质。

3、焊前预热300~400℃。



WD-8015 Agglomerated Flux For S.A. Welding

Standards: GB/T 17854  F410-H1Cr13

Introduction

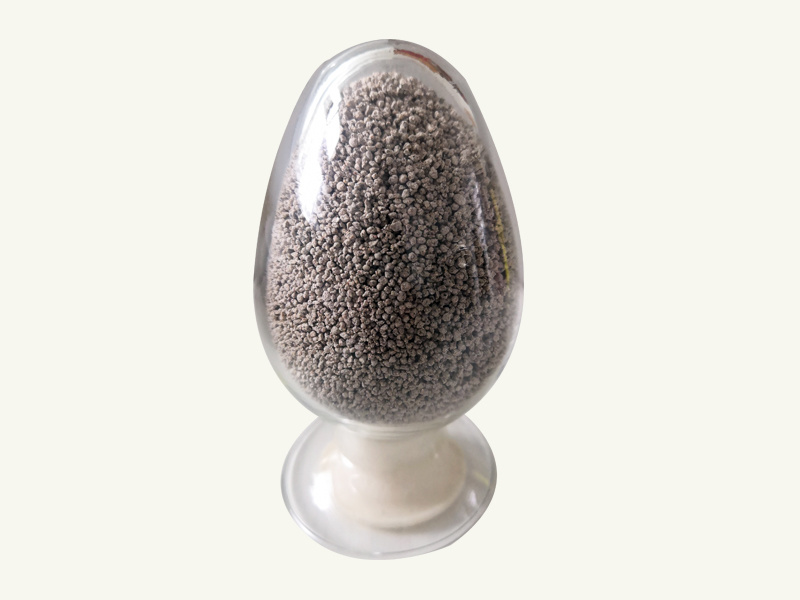

WD-8015 is an agglomerated fluoride-basic type flux with a basicity index of BIIW 1.8. The flux is  spherical granular, grain size is from 10 to 60 mesh. It matches the corresponding flux core and high Cr-Ni solid, for metal surfacing. It has excellent crack resistance and welding technology. Slag detachability is good.

Applications

Hard surfacing of rollers for hot working, supporting, pressure, straightening and continuous casting.

Main Constituents (%)


Typical chemical composition of deposited metal (%)

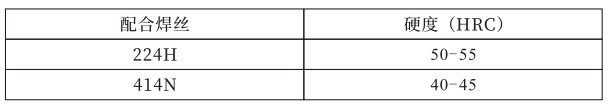

Reference Hardness


Notice:

1. Flux should be redried at 300~350°C for 2 hours.
2. All dust, oil and rust should be removed.
3. Preheating at 300~400°C before welding.
