WD-8011埋弧焊用烧结焊剂WD-8011 SAW FLUX

符合标准:GB/T17854-1999 F410-H1Cr13
所属分类
没有此类产品
产品描述

符合标准:

GB/T 17854-1999 F410-H1Cr13



说明:WD-8011是氟碱型烧结焊剂,碱度约为2.6(BIIW),为乳黄色或乳白色圆形颗粒,粒度为10-60目,松装密度小,适于较小的焊接电流,电流采用直流电源,焊丝接正极;焊接工艺性能良好,易脱渣,成形美观,堆焊金属具有优良的抗晶间腐蚀性能和抗脆化性能。焊剂的熔敷金属为13Cr系,配合Cr13系列实芯焊丝、药芯焊丝和H3Cr2W8焊丝等,广泛用于合金钢、高合金钢的自动焊接和硬面堆焊,特别适于轧辊及锅炉等易磨件的修复堆焊。



用途:可用于堆焊连续铸造辊、轧机辊及送进辊。



焊剂参考成分(%):





熔敷金属典型值:





参考硬度值:





注意事项:

1、焊剂如果受潮,在使用前须经300~350℃烘焙2小时。

2、焊接处须清除铁锈、油污、水分等杂质。

3、焊前预热300~400℃。



WD-8011 Agglomerated Flux For S.A. Welding

Standards: GB/T 17854  F410-H1Cr13

Introduction

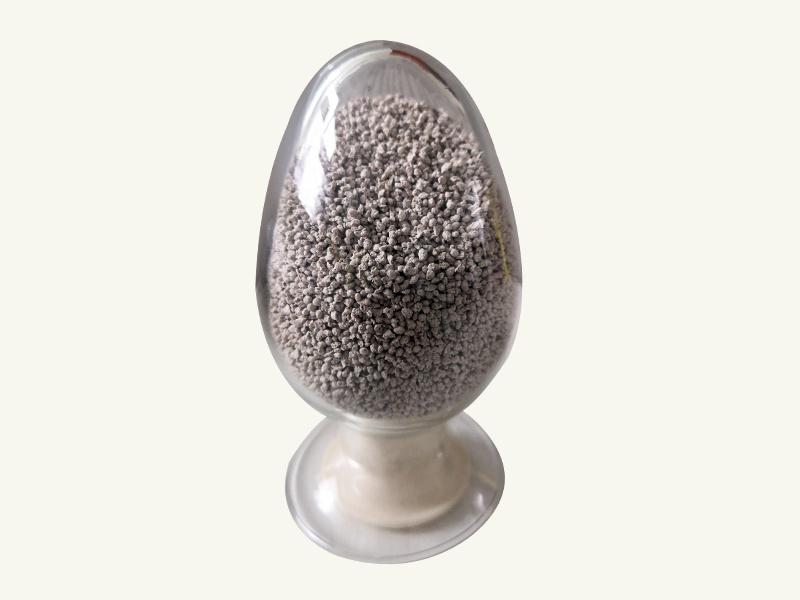

WD-8011 is an agglomerated fluoride-basic type flux with a basicity index of BIIW 2.6. The flux is vitelline or white spherical granular, grain size is from 10 to 60 mesh. Bulk density is low. It is suitable to small welding current which is direct, welding stick connect anode current. It has excellent welding technology properties. Regularly shaped welds are deposited without reduction of area or interface notches. Slag detachability is good. The welds are smooth and without slag residue. The solder deposited metal is the 13Cr department and Cr21Ni10 department, matching Cr13 welding stick series of solid, flux-cored,H0Cr21Ni10 and so on. It used in the alloy steel, high alloy steel, stainless steel automatic welding and hard surfacing welding, especially in repaired grindability pieces of hard roll.

Applications

Hard surfacing of rollers for continuous casting, steel rolling, transport, etc.

Main Constituents (%)


Typical chemical composition of deposited metal (%)


Reference Hardness


Notice:

1. Flux should be redried at 300~350°C for 2 hours.
2. All dust, oil and rust should be removed.



3. Preheating at 300~400°C before welding.
