产品描述
符合标准:
GB/T 17854-1999 F309L-H00Cr24Ni13 F347L-H00Cr21Ni10Nb
说明:WD-618焊剂是铝氟型烧结焊剂,碱度约2.8(BIIW),用于低碳钢,低合金钢上不锈钢过渡层及耐蚀层的电渣带极堆焊。焊剂的熔敷金属中铬的烧损极少,也不增碳、硅,锰的烧损极少,其冶金特性为中性。
用途:用于化工容器、加氢反应器内壁及管板的不锈钢电渣带极堆焊。
焊剂参考成分(%):

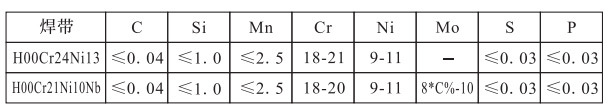

堆焊金属化学成分(%):
注意事项:
1、焊剂如果受潮,在使用前须经300~350℃烘焙2小时。
2、焊接处须清除铁锈、油污、水分等杂质。

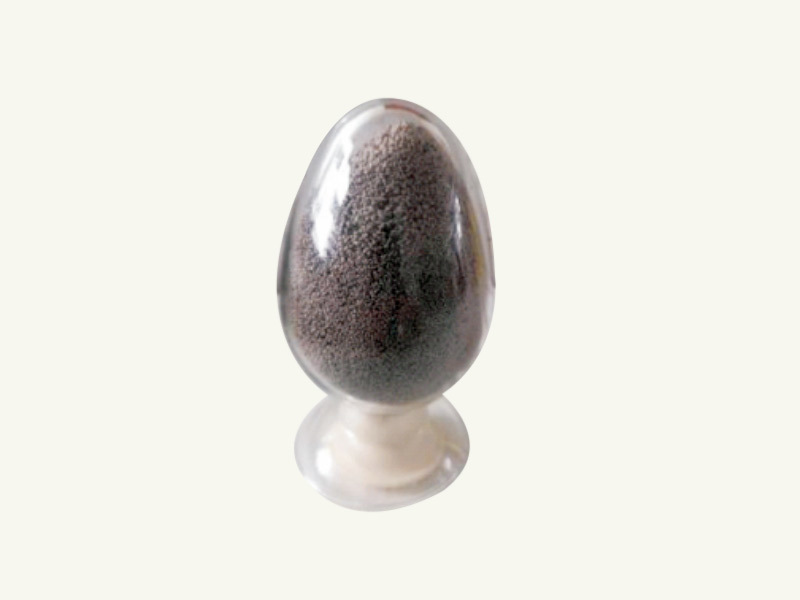

WD-617 Agglomerated Flux For S.A. Welding
Standards: GB/T 17854-1999 F309L-H00Cr24Ni13 316L-H00Cr19Ni12Mo2
Introduction
WD-617 is flux for electroslag hard surfacing, the flux is powder granular.WD-617 can be welded with flat characteristic DC for hard surfacing, electroslag process is stable. It has an excellent slag detachability, bead appearance is beautiful, the fusion of bead joint is well. The flux doesn’t increase Carbon and the consumption of Cr is low.WD-617 is applicable of electroslag hard surfacing on the solder strip of 30-75mm.
Applications
Hard surfacing of corrosion resistance stainless steels for nuclear vessel, hydrogenation reactor and pressure vessel, etc.
Main Constituents (%)

Typical chemical composition of deposited metal (%)

Notice:
1. Flux should be redried at 300~350°C for 2 hours.
2. All dust, oil and rust should be removed.
